توضیحات تکمیلی:

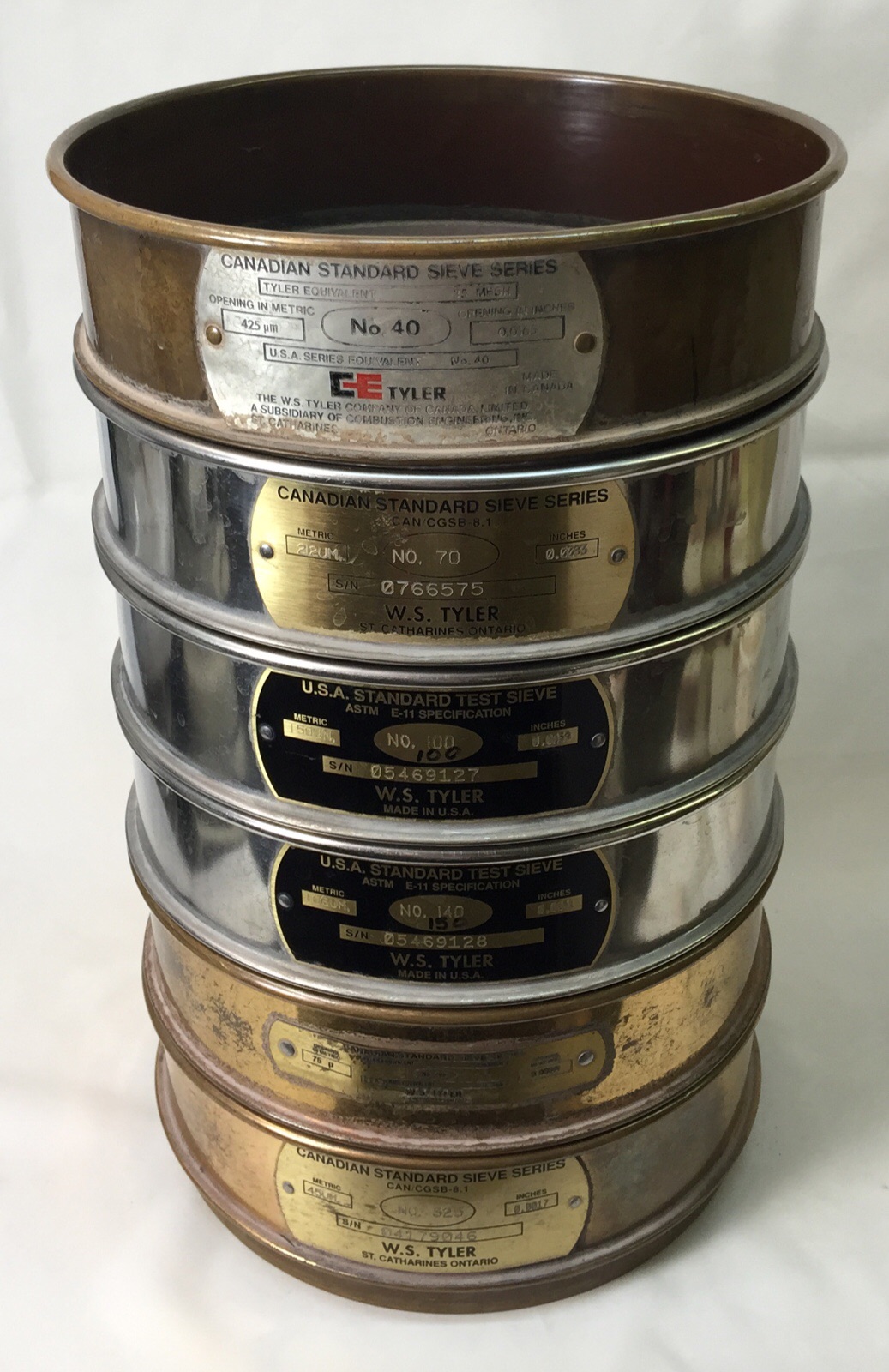

تعیین باقی مانده به روش سیو شیکر با استفاده از الک ها با مش بندی متفاوت



محتوای آزمون:

خاک ها متشکل از ذرات با شکل ها و اندازه های مختلف هستند. این روش آزمایش برای تفکیک ذرات به محدوده های اندازه و تعیین کمی جرم ذرات هر محدوده به کار می رود. این اطلاعات ادغام می شوند تا توزیع اندازه ذرات تعیین شود.



استانداردها

جهت خرید و دستیابی به هر یک از استاندارد های زیر از طریق صفحه تماس با ما اقدام نمایید.



شماره اِی اِس تی اِم بین‌الملل (انجمن مواد و آزمون آمریکا): D6913 / D6913M – 17 | روش های آزمایش استاندارد برای توزیع اندازه ذرات (دانه بندی) خاک ها با استفاده از آنالیز الک



شماره سازمان ملی استاندارد ایران ISIRI INSO: 446 | سنگدانه ها -مواد ریزتر از الک ۷۵ میکرومتر (شماره ۲۰۰) در سنگدانه های معدنی با شستشو-روش آزمون



سایر استانداردهای صنعتی: IS | Indian Standard 12446:2007 | بنتونیت مورد استفاده در ریخته گری



English more details:

Keywords: Sieve | Fineness



Standards:

American Society for Testing and Materials (ASTM) Standrard: D6913 / D6913M – 17 | Standard Test Methods for Particle-Size Distribution (Gradation) of Soils Using Sieve Analysis



Institute of Standard and Industrial Research of Iran (ISIRI) or Iranian National Standards Organization (INSO) Standard:  ۴۴۶ | Aggregates – Materials Finer than 75µm (No. 200) Sieve in Mineral Aggregates by Washing- Test Method



Other standards: IS | Indian Standard 12446:2007 | Bentonite for use in foundries [MTD 14:Foundry]



Scope:

1.1 Soils consist of particles with various shapes and sizes. This test method is used to separate particles into size ranges and to determine quantitatively the mass of particles in each range. These data are combined to determine the particle-size distribution (gradation). This test method uses a square opening sieve criterion in determining the gradation of soil between the 3-in. (75-mm) and No. 200 (75-µm) sieves.

1.2 The terms, soils and material, are used interchangeably throughout the standard.

1.3 In cases where the gradation of particles larger than 3 in. (75 mm) sieve is needed, Test Method D5519 may be used.

1.4 In cases where the gradation of particles smaller than No. 200 (75-µm) sieve is needed, Test Method D7928 may be used.

1.5 Typically, if the maximum particle size is equal to or less than 4.75 mm (No. 4 sieve), then single-set sieving is applicable. Furthermore, if the maximum particle size is greater than 4.75 mm (No. 4 sieve) and equal to or less than 9.5 mm (3/8-in sieve), then either single-set sieving or composite sieving is applicable. Finally, if the maximum particle size is equal to or greater than 19.0 mm (3/4-in sieve), composite sieving is applicable. For special conditions see 10.3.

1.6 Two test methods are provided in this standard. The methods differ in the significant digits recorded and the size of the specimen (mass) required. The method to be used may be specified by the requesting authority; otherwise Method A shall be performed.

1.6.1 Method A—The percentage (by mass) passing each sieve size is recorded to the nearest 1 %. This method must be used when performing composite sieving. For cases of disputes, Method A is the referee method.

1.6.2 Method B—The percentage (by mass) passing each sieve size is recorded to the nearest 0.1 %. This method is only applicable for single sieve-set sieving and when the maximum particle size is equal to or less than the No. 4 (4.75-mm) sieve.
